Magswitch MagJig 235

Jonathan’s Hot Take:

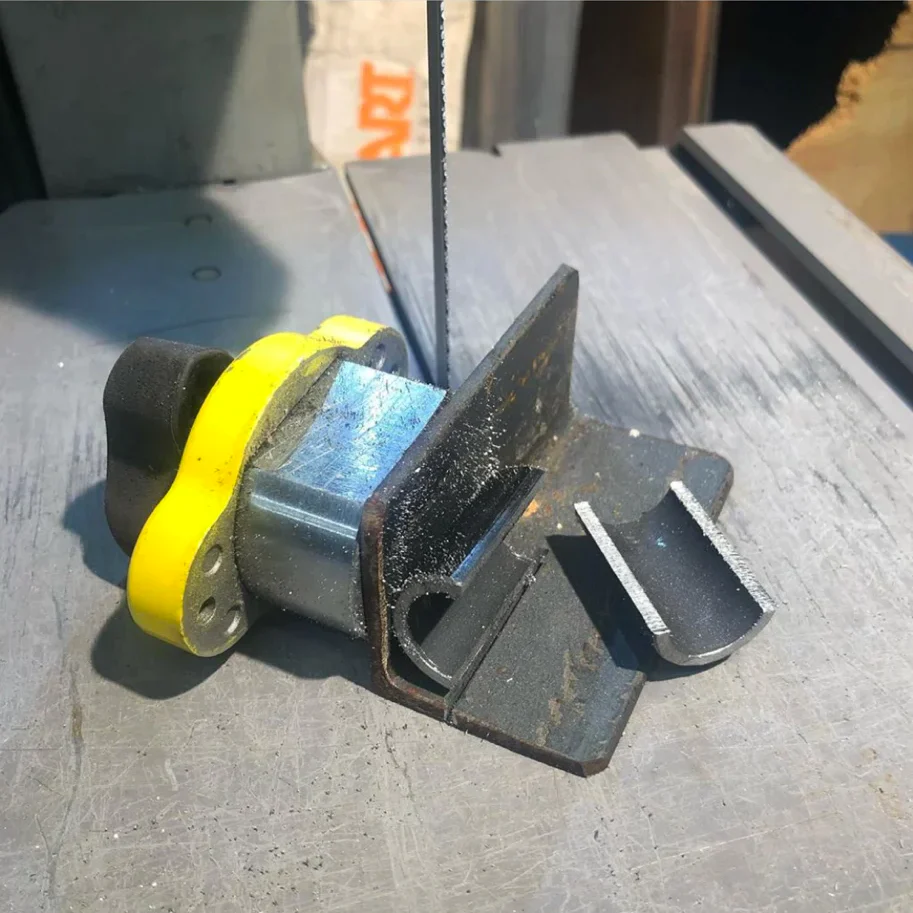

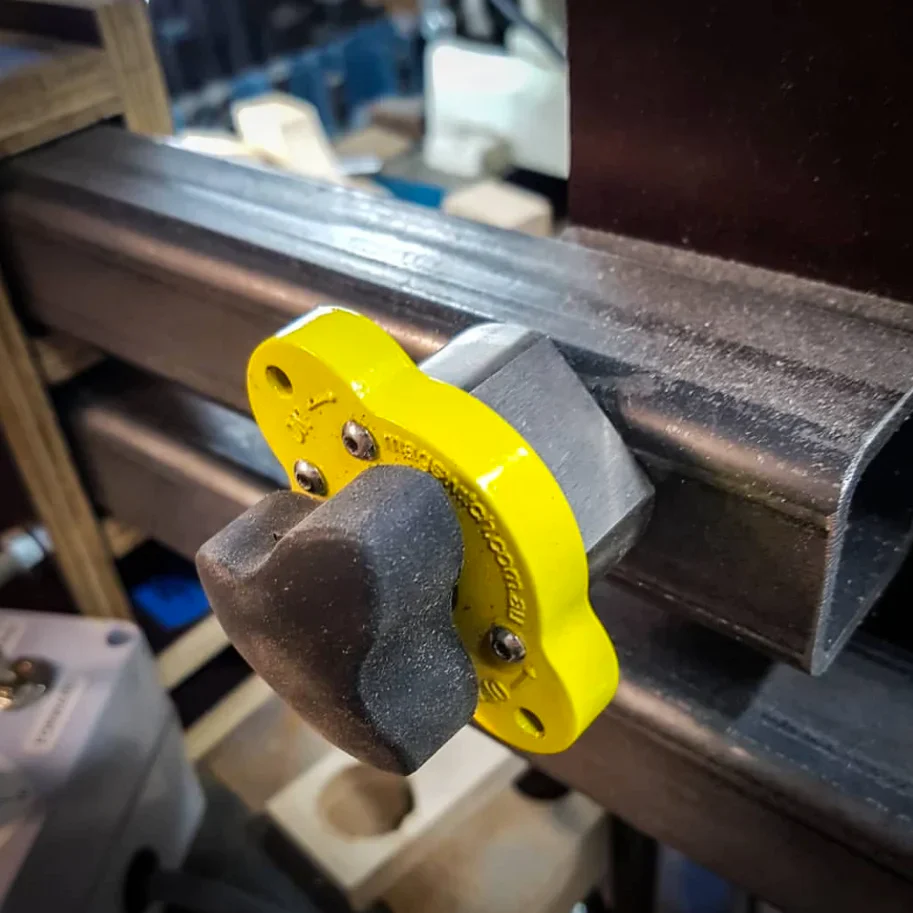

Magnetic fixturing clamp will secure your fixture into place. Rotate the knob to turn on and off 216 pounds of magnetic hold force. Simply drill a hole in a fixture and place the MagJig in to use for downward pressure clamping.

• Magnetic field turns completely on and off mechanically
• Does not use an electrical power source
• Holds flat and round surfaces of steel
• 3/4" standoff for flush mount
• Designed with screw holes to add more security in a fixture
• Excellent for woodworking, welding, and fabrication

SPECIFICATIONS

Max Breakaway: 216 lbs (98 kg)

Full Saturation Thickness: 0.25" (6 mm)

2:1 Shear Working Load: 44 lbs (20 kg)

Magnetic Pole Footprint: 56 mm x 41.25 mm

Product Weight: 1.1 lbs (0.5 kg)

Dimensions: 3.5 x 2.4 x 3.1 in (88.9 x 60.9 x 78.7 mm)
